Proveedor de máquinas de acabado con perforación y encuadernación de doble alambre y espiral.
Proveedor profesional de máquinas de encuadernación y perforación de China.
Proveedor de máquinas de acabado con perforación y encuadernación de doble alambre y espiral.
Proveedor profesional de máquinas de encuadernación y perforación de China.
|
Datos del producto:
Pago y Envío Términos:
|
| Funciones: | Conformador de bobinas de plástico y aglutinante de bobinas de plástico. | Tamaño mínimo del libro: | Mínimo 72 mm x 72 mm |
|---|---|---|---|
| Tamaño máximo del libro: | Máximo 420 mm x 300 mm | espesor del libro: | Hasta 25 mm |
| Fuerza: | 3ph 380V, 8KW | Velocidad: | hasta 700 libros/hora |

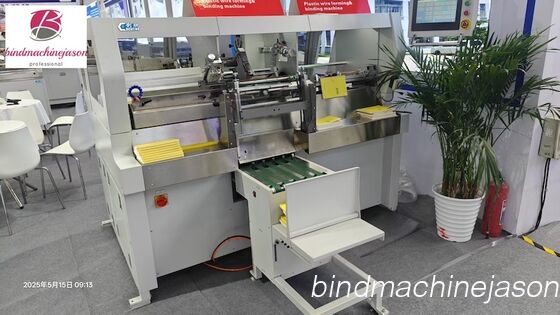

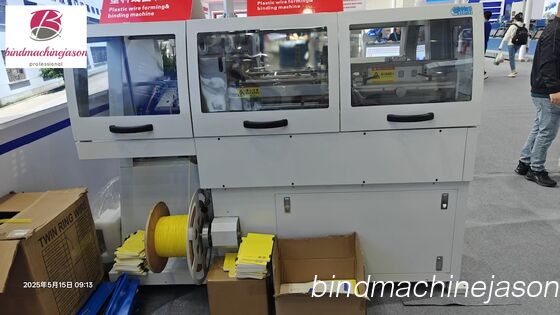

Plastic coil forming and coil binding machine PS420 for notebooks thickness up to 25mm
PS420 plastic coil forming and binding machine is a perfect machine used for printing factory to do many differ size and differ thickness book which need be used for plastic coil binding. Machine developed by our partner company (NINGBO CREATIVE AUTOMATIC CO.,LTD )
Application :
Machine can do differ book size from min A7 book to max size A3 size book ,also for differ book thickness which more than 20mm . But this machine request you punch the hole first ,so if purchased this machine ,also need a punching machine to do hole perforate .
Technical data:
| speed | Up to 700 books per hour |
| Air pressure | 5-8 kgf |
| Plastic coil diameter ranger | Min 8 and max 28mm (currently 2025 year dec |
| Hole pitch suggested |
standard configuration Thin book 6.35 (4:1 pitch ) Thicker book 8.47 (3:1 pitch )
other pitch Other pitch can be customized
|
| Max size of paper | Binding side 420mm x 300 mm |
| Min size of paper | Binding side 72mm x 72mm |
| Max book thickness | 23mm-24mm (currently ) |
| Electric power | 3ph 380V ,8KW |
A book that is made with a Plastic Coil book binding will have a similar look to a book made with Wire-O binding, but it will have a few distinct advantages over books bound with wire.

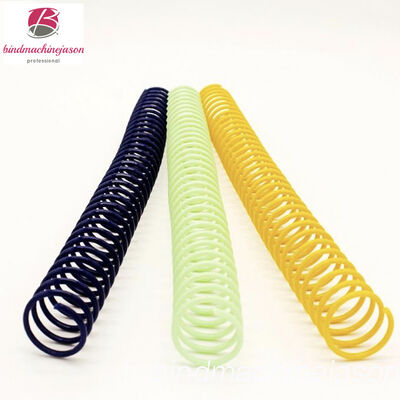

1. Books made with Plastic Coil have a highly flexible appearance. Coils can be made in a variety of colors and sizes making them perfect for all kinds of uses.
2. Safe for little fingers and easy to manipulate, spiral books are good for all ages to use.
Some of the most common uses for plastic coil book printing are:
